Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex WingTeks

FIXING TIMBER TO METAL

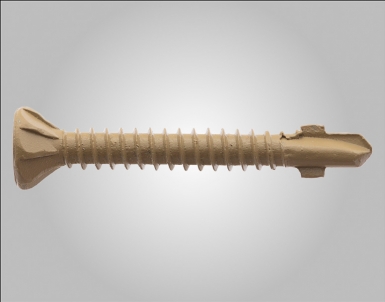

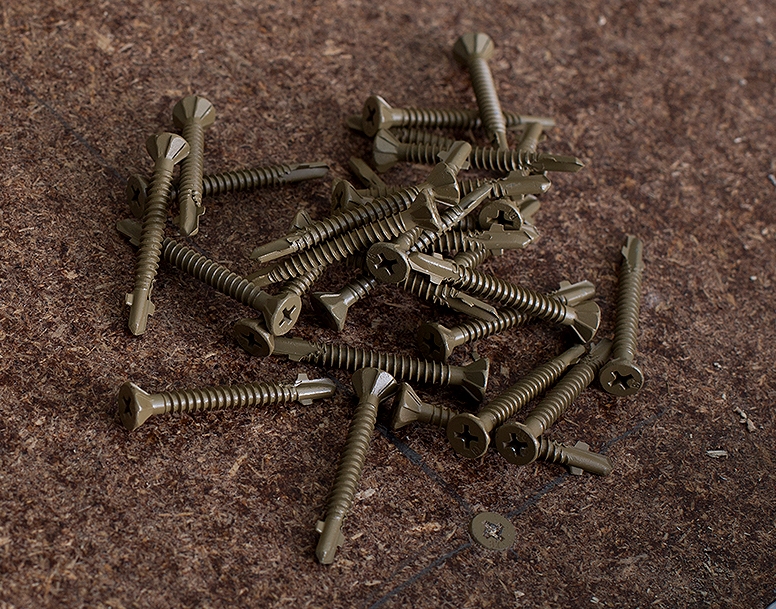

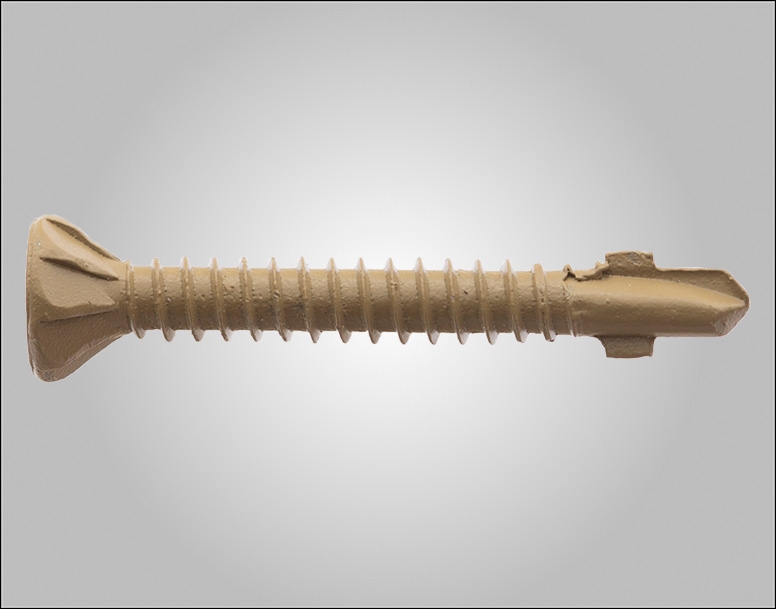

Wing Teks®

Application

The Buildex® Wing Teks® range of fasteners is used for fixing timber floor, fences and composite boards to metal.

Features and Benefits

  • Fixes timber to metal without the timber rising to the top of the screw while the metal is being drilled
  • Features a flat head with reaming cutters in the underside to enable the head of the fastener to self-embed for a flush or recessed finish
  • The wings on Wing Tek® screws remove the need for predrilling timber or composite board
  • Quick and easy to install
  • Teks® point for easy drilling into steel
  • High pull-out strength
Part NumberProductGaugeThreadLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-321-0040-7CC (While stocks last) Wing Teks® 10 16 45mm Countersunk Rib Head Climacoat® Unpainted 500 4 pdf32101-PDS
6-321-0041-5CC (While stocks last) Wing Teks® 8 18 35mm Countersunk Rib Head Climacoat® Unpainted 1000 4 pdf32102-PDS
6-321-0042-3CC (While stocks last) Wing Teks® 10 16 55mm Countersunk Rib Head Climacoat® Unpainted 1000 1 pdf32101-PDS
6-321-0057-9CC (While stocks last) Wing Teks® 10 16 40mm Countersunk Trim Rib Head Climacoat® Unpainted 500 4 pdf32106-PDS
6-321-0058-7CC (While stocks last) Wing Teks® 14 20 65mm Countersunk Rib Head Climacoat® Unpainted 500 1 pdf32104-PDS

RELATED PRODUCTS

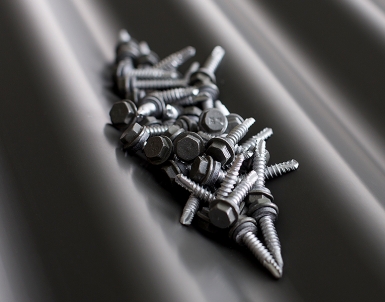

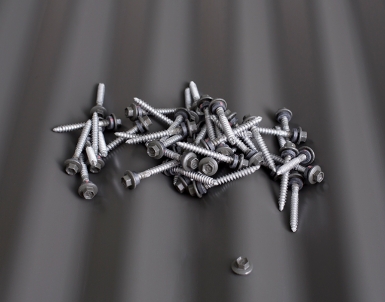

Roofzips®

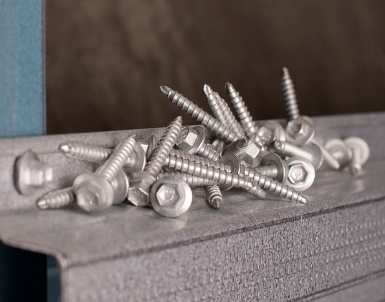

BattenZIPs®

Designer Head Zips & Metal Teks®

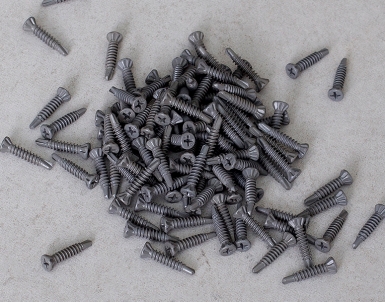

FibreTeks®

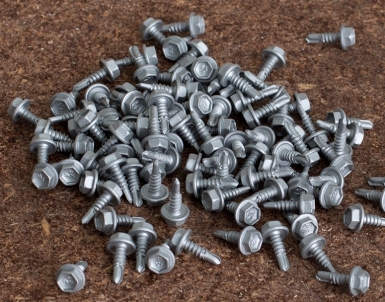

Smooth Top, Wafer & Hex Teks®
