Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex RoofZIPS® Screws

steel frame housing - fixing roof sheeting

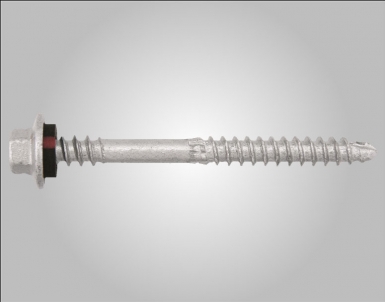

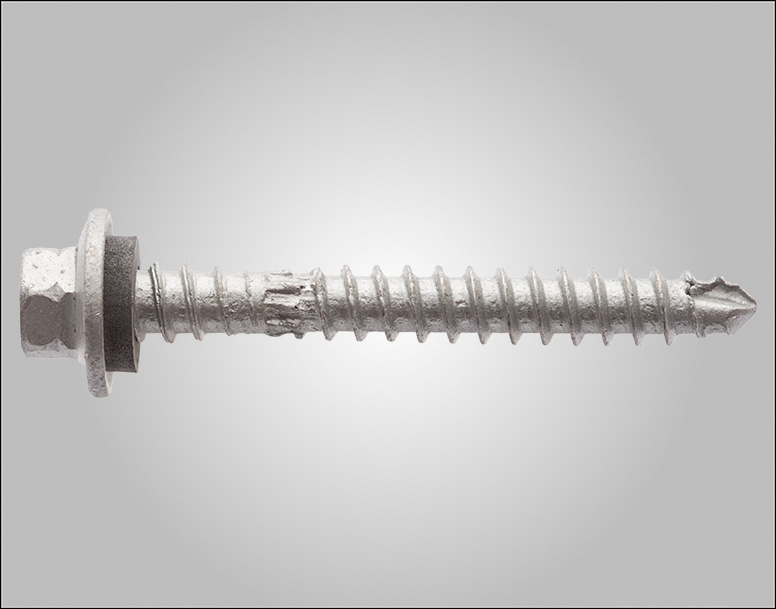

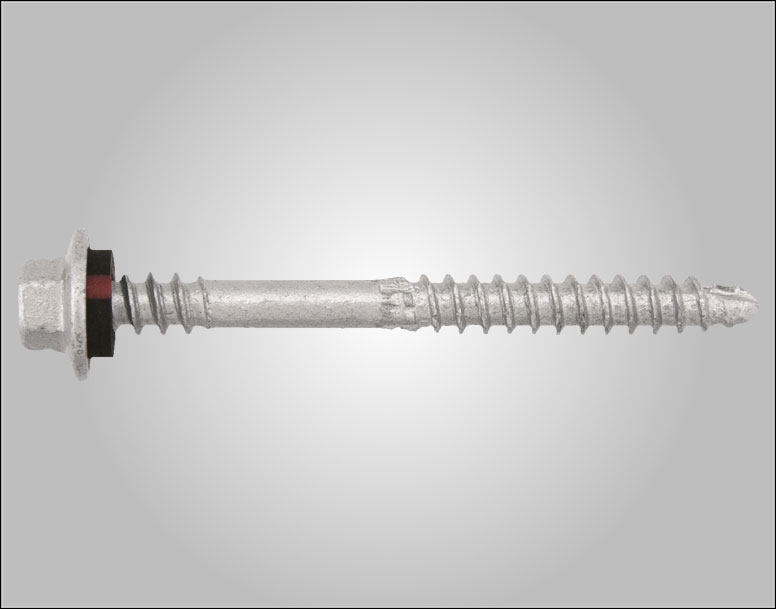

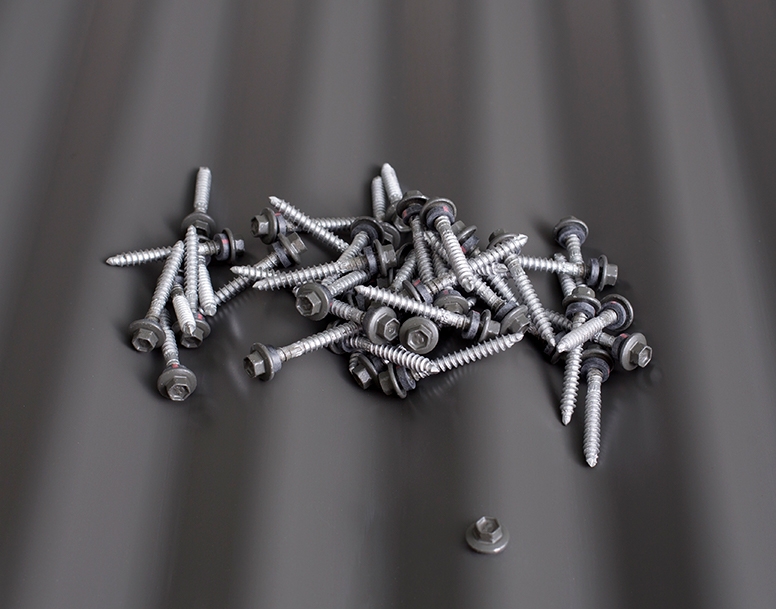

Roof Zips®

Application

Buildex® Roof Zips® is a versatile solution which fastens metal roofing to light metal battens up to 1.5mm thick and soft wood timber battens making it ideal for domestic applications.

Features & Benefits

  • Fast & Easy Installation – patented Roof Zips® point design simplifies installation saving you time and money
  • High pull-out strength
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard® feature which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Higrip® Feature grips to the roof sheeting to create a positive join preventing water entry and over drilling. It also stops the roof sheet moving down the shank when the roof is walked on
  • Trade Grade since 1917
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripShanguardAvailable ColoursPack QtyCarton QtyDatasheet link
1-030-9306-1TPC4 Roof Zips® M6 11 50mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 100 5 pdf03212-PDS
1-030-9307-2TPC4 Roof Zips® M6 11 65mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 100 5 pdf03212-PDS
6-030-3306-1C4 Roof Zips® M6 11 50mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 1000 1 pdf03212-PDS
6-030-3307-2C4 Roof Zips® M6 11 65mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 1000 1 pdf03212-PDS
6-030-3330-1C4 Roof Zips® 14 12 55mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 1000 1 pdf03152-PDS
6-030-5306-1C5 Roof Zips® M6 11 50mm Hex Head With Seal Climaseal® 5 ✔ ✔ Colormatch® 1000 1 pdf03212-PDS
6-030-5307-2C5 Roof Zips® M6 11 65mm Hex Head With Seal Climaseal® 5 ✔ ✔ Colormatch® 1000 1 pdf03212-PDS
6-030-5330-1C5 Roof Zips® 14 12 55mm Hex Head With Seal Climaseal® 5 ✔ ✔ Colormatch® 1000 1 pdf03152 PDS

RELATED PRODUCTS

BattenZIPs®

Designer Head Zips & Metal Teks®

FibreTeks®

Wing Teks®

Smooth Top, Wafer & Hex Teks®

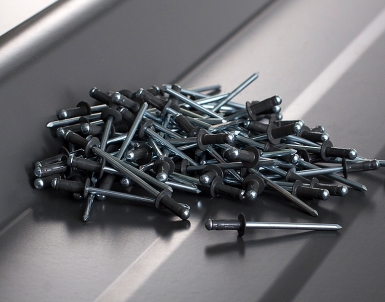

Rivets
