Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex Designer Head ZIPS®

Steel Frame Housing - Fixing Wall Frames & Cladding

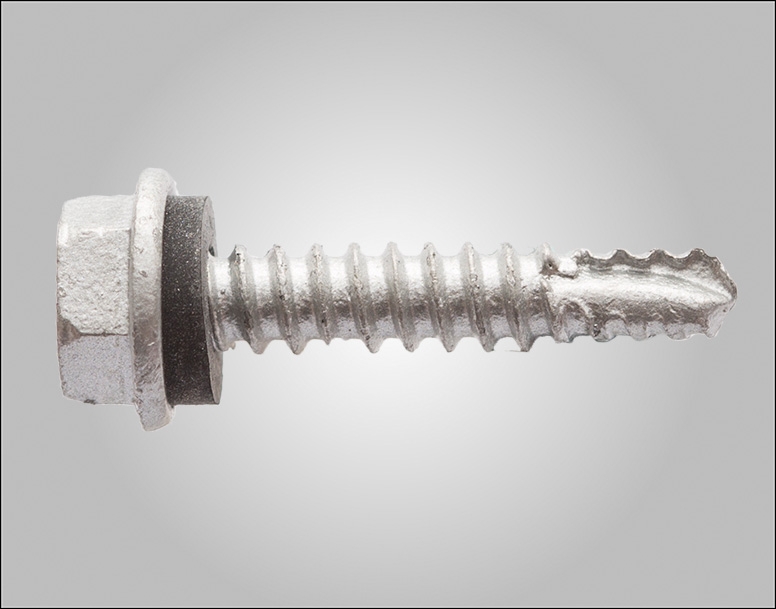

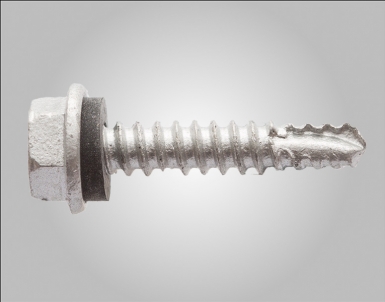

Designer Head ZIPS®

Application

Buildex® Designer Head ZIPS® have a low profile hex head that is ideal for use on cladding, where appearance is important. They are designed for valley fixing cladding profiles to steel purlins up to 3mm thick and timber battens.

Features & Benefits

  • Low profile hex head makes them ideal for use on cladding where appearance is important
  • High pull-out strength
  • Climaseal® 4 corrosion protection
  • Unique drill point that allows fastening to both timber and steel
Part NumberProductGaugeThreadLengthHead TypeSealFinishAvailable ColoursPack QTYCarton QtyDatasheet Link
1-030-9326-6TPC4 (While stocks last) Designer Head Zips® 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch®* 100 5 pdf03223-PDS
6-030-3326-8C4 Designer Head Zips® 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch® 1000 3 pdf03223-PDS
6-031-3326-6C4 (While stocks last) Designer Head Zips® 10 16 25mm Hex Designer Head No Seal Climaseal® 4 Colormatch® 1000 3 pdf03223-PDS

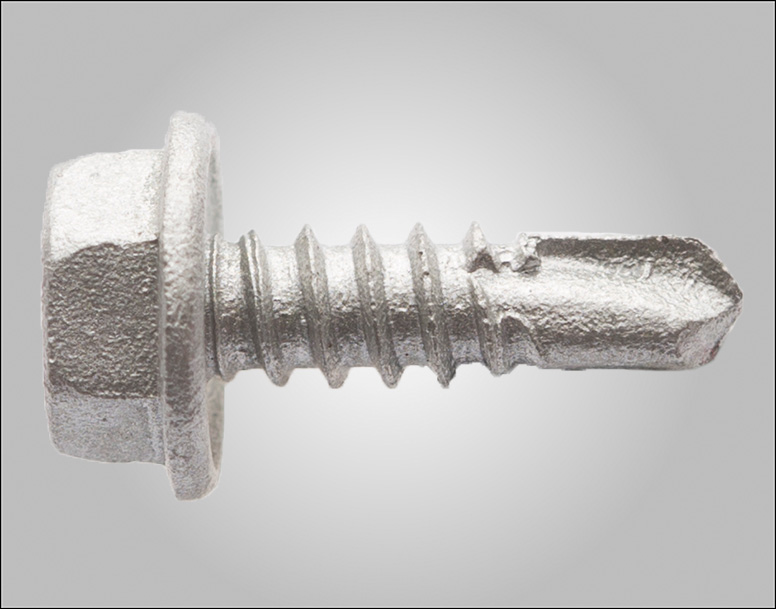

Metal Teks®

Application

Buildex® 10-16 x 16mm Metal Teks® cladding screws can be used for fixing wall frames to metal and a wide range of other metal-to-metal applications.

Features and Benefits

  • Fast and Easy application into steel with Teks® point for steel between 1-5mm
  • High pull-out strength
  • Climaseal® 4 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealFinishAvailable ColoursPack QTYCarton QtyDatasheet Link
6-311-3151-1C4 Metal Teks® 10 16 16mm Hex Head No Seal Climaseal® 4 Colormatch® 1000 3 pdf31166-PDS
