Technical reference only. For ongoing range please consult the latest Fastener Guide
BattenZIPs®

FIXing BATTENS TO TIMBER AND LIGHT METAL

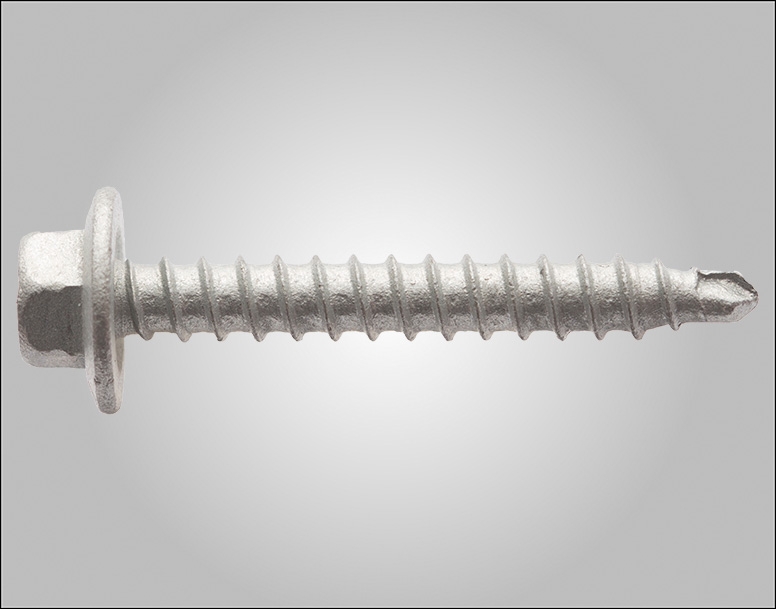

Hex Head BattenZIPS®

Application

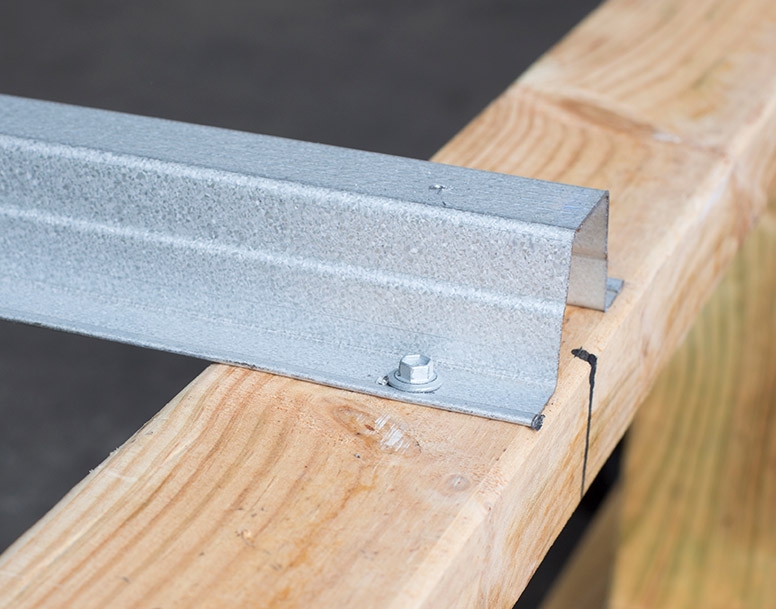

Buildex® 12 - 11 x 40mm Hex Head BattenZIPS® are designed for fixing thin metal roofing battens to timber trusses. The product can also be used as companion screws in steel roof and floor truss assembly as well as general fixing.

Features and Benefits

  • Unique point for excellent drilling performance in thin metal, soft wood and hardwoods.
  • High pull-out strength
  • Wax finish for lower friction making the fastener easier to drive than other roof batten fasteners on the market
  • Climaseal® 3 corrosion protection
Part NumberProductGaugeThreadLengthHead TypeSealFinishAvailable ColoursPack QtyCarton QtyDatasheet link
1-311-9610-1TPMP BattenZIPs® 12 11 40mm Hex Head No Seal Climaseal® 3 Unpainted 100 5 pdf31199-PDS
6-311-0610-1MP BattenZIPs® 12 11 40mm Hex Head No Seal Climaseal® 3 Unpainted 1000 1 pdf31199-PDS
