Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex Designer Head ZIPS®

FIXing CLADDING TO TIMBER AND LIGHT METAL

Buildex® Designer Head ZIPS®

Application

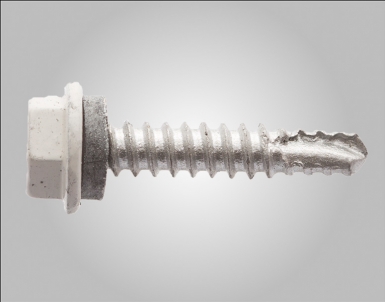

Buildex® Designer Head ZIPS® have a low profile hex head that is ideal for use on cladding, where appearance is important. They are designed for valley fixing cladding profiles to steel purlins up to 3.5mm thick and timber battens.

Features & Benefits

  • Low profile hex head makes them ideal for use on cladding where appearance is important
  • High pull-out strength
  • Climaseal® 4 corrosion protection
  • Unique drill point that allows fastening to both timber and steel
Part NumberProductGaugeThreadLengthHead TypeSealFinishAvailable ColoursPack  QTYCarton QtyDatasheet Link
1-030-9326-6TPC4 (While stocks last) Designer Head Zips® 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch®* 100 5 pdf03223-PDS
6-030-3326-8C4 Designer Head Zips® 10 16 25mm Hex Designer Head With Seal Climaseal® 4 Colormatch® 1000 3 pdf03223-PDS
6-031-3326-6C4 (While stocks last) Designer Head Zips® 10 16 25mm Hex Designer Head No Seal Climaseal® 4 Colormatch® 1000 3 pdf03223-PDS



*Available in limited colours including - Plain, Surfmist (OW), Shale Grey (GG), Dune (BI), Windspray (AG), Monument (GM), Woodland Gret (SG), Classic Cream (SC) and Basalt (BA).

Roof Zips®

Application

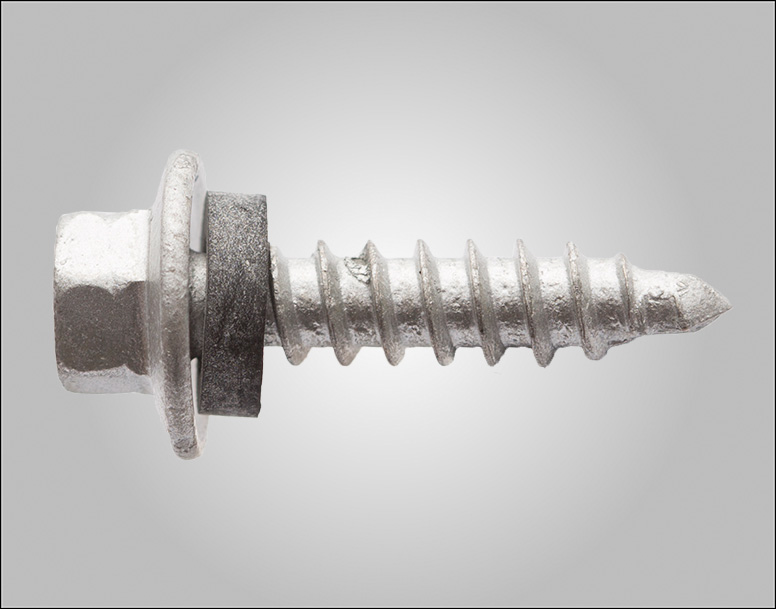

Buildex M6 -11 x 25mm Roof Zips® (non cyclonic regions) and 14 -12 x 30mm Roof Zips® (Cyclonic Regions) are designed for valley fixing roof sheets and side cladding to top hat and timber battens. Fixes into metal up to 1.5mm thick (14-12 screws 0.42mm to 1.2mm).

Features & Benefits

  • Fast & Easy Installation – patented Roof Zips® point design simplifies installation saving you time and money
  • High pull-out strength
  • Climaseal® 5 and Climaseal® 4 corrosion protection
  • Trade Grade since 1917

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
1-030-9308-3TPC4 Roof Zips® M6 11 25mm Hex Head With Seal Climaseal® 4 Colormatch® 100 5 pdf03213-PDS
6-030-3308-3C4 Roof Zips® M6 11 25mm Hex Head With Seal Climaseal® 4 Colormatch® 500 3 pdf03213-PDS
6-030-5308-8C5 Roof Zips® M6 11 25mm Hex Head With Seal Climaseal® 5 Colormatch® 500 3 pdf03213-PDS
6-031-3308-8C4 Roof Zips® M6 11 25mm Hex Head No Seal Climaseal® 4 Colormatch® 500 3 pdf03213-PDS
6-030-3372-2C4 Roof Zips® 14 12 30mm Hex Head With Seal Climaseal® 4 Colormatch® 500 3 pdf03152-PDS
6-031-3372-2C4 Roof Zips® 14 12 30mm Hex Head No Seal Climaseal® 4 Colormatch® 500 3 pdf03152-PDS
