Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex PolyZips®

FIXIng polycarbonate sheets to TIMBER AND METAL

Polyzips®

Application

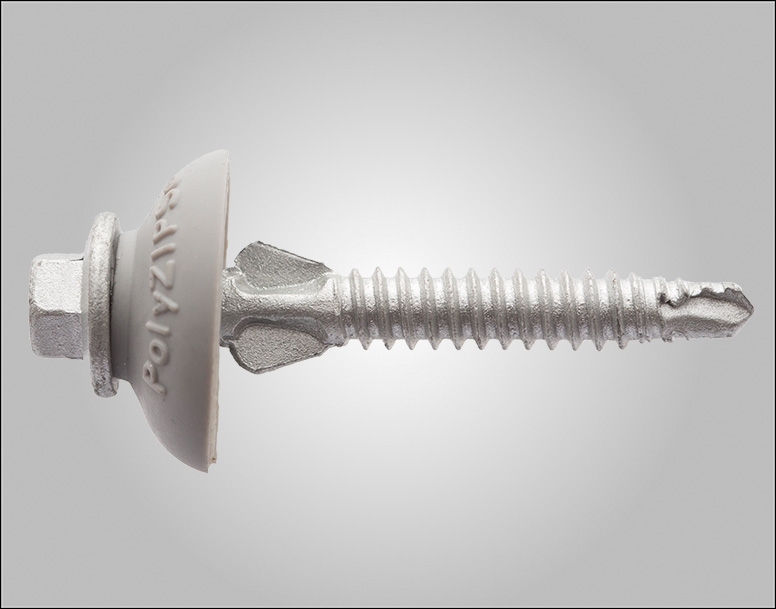

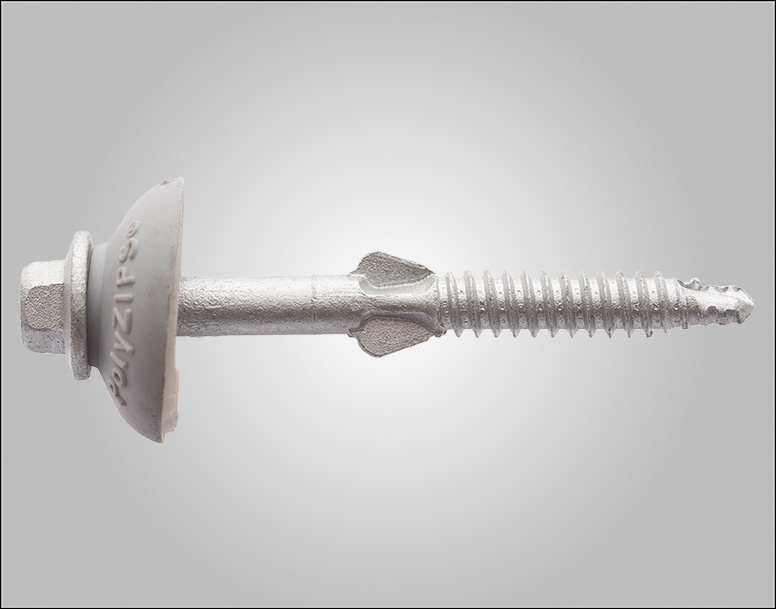

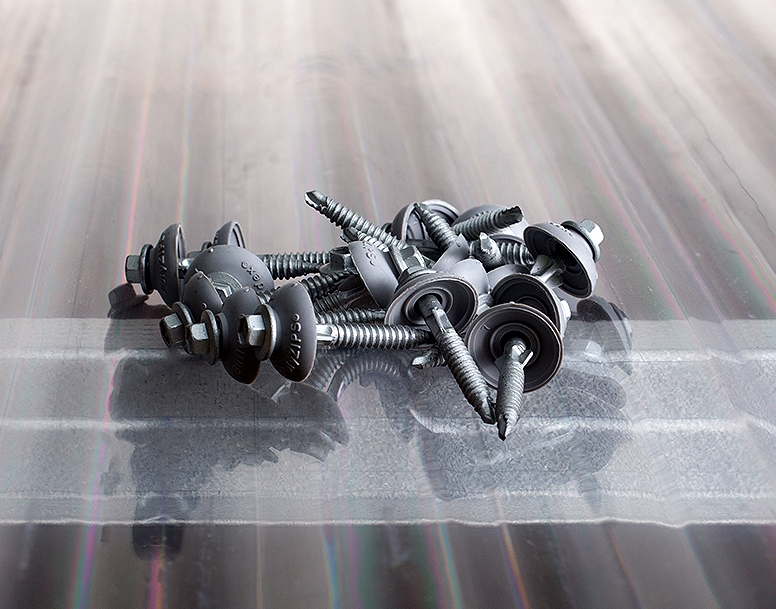

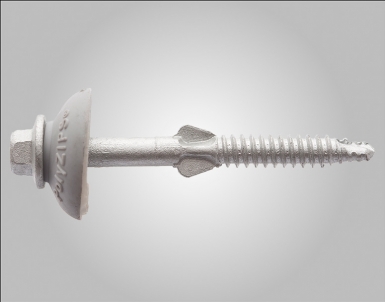

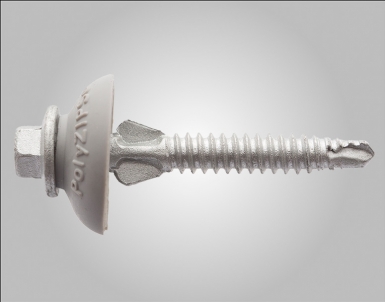

Buildex® 14 -14 Polyzips® Polycarbonate Roofing Screws are designed for crest pierce fixing polycarbonate roof sheets to timber battens and steel up to 1.2mm thick. Typical applications are; pergolas, outdoor entertainment areas and skylights.

Buildex® Poly Teks® are recommended for fixing Polycarbonate sheeting to steel over 1.2mm.

Features & Benefits

  • Pre-drills its own expansion hole
  • Zips® drill point for high drilling performance in both timber and metal battens
  • High pull-out strength
  • 26mm EPDM washer with inner sealing ring to prevent water entry
  • Wing design drills an over sized hole into polycarbonate material which helps eliminate sheet buckling and water entry due to expansion in high temperature
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
1-030-0350-1CSBT Polyzips® 14 14 50mm Hex Head 26mm EPDM Climaseal® 3 Unpainted 250 4 pdf03146-PDS
1-030-7334-4 Polyzips® 14 14 50mm Hex Head 26mm EPDM Climaseal® 3 Unpainted 50 1 pdf03146-PDS
6-030-0350-1CS Polyzips® 14 14 65mm Hex Head 26mm EPDM Climaseal® 3 Unpainted 500 1 pdf03146-PDS
