Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex GX® Frame Screw

Steel frame housing - Fixing to steel wall frames

GX® Frame Screw

Application

The Buildex® GX® Frame Screw is designed for connecting wall frame components together through pre-punched holes.

Features & Benefits

  • Ezi-Coat® high performance corrosion coating specifically formulated for steel framing
  • Ezi-Coat® reduces installation torque and increases drill speed, decreasing overall installation time
  • Smooth top head for discreet fixing
  • Superior holding strength
  • Easy application
Part NumberProductGaugeLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-201-0021-1MP GX Frame Screw Smooth Top M6 15mm Smooth Top Ezi-coat® Unpainted 3000 1 pdf20001-PDS

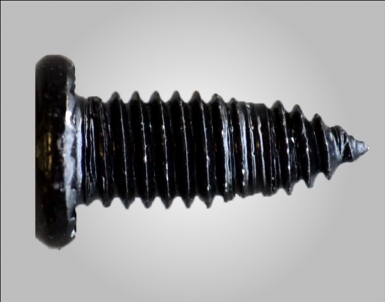

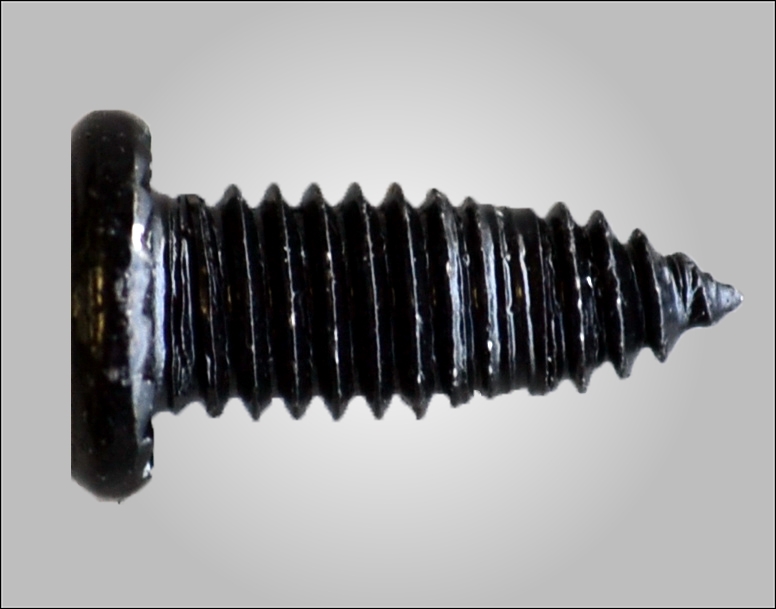

GX Teks® Frame Screw

Application

The Buildex GX Teks® Frame Screw is designed for stud to plate connections and connection lintels to plates without pre-punched holes.

Features & Benefits

  • Ezi-Coat® high performance corrosion coating specifically formulated for steel framing
  • Smooth top head for discreet fixing
  • Superior holding strength
  • Easy application

Part NumberProductGaugeLengthHead TypeCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-371-0005-5MP GX Frame Teks® Screw Smooth Top M6 18mm Smooth Top Ezi-coat® Unpainted 3000 1 pdf37104-PDS

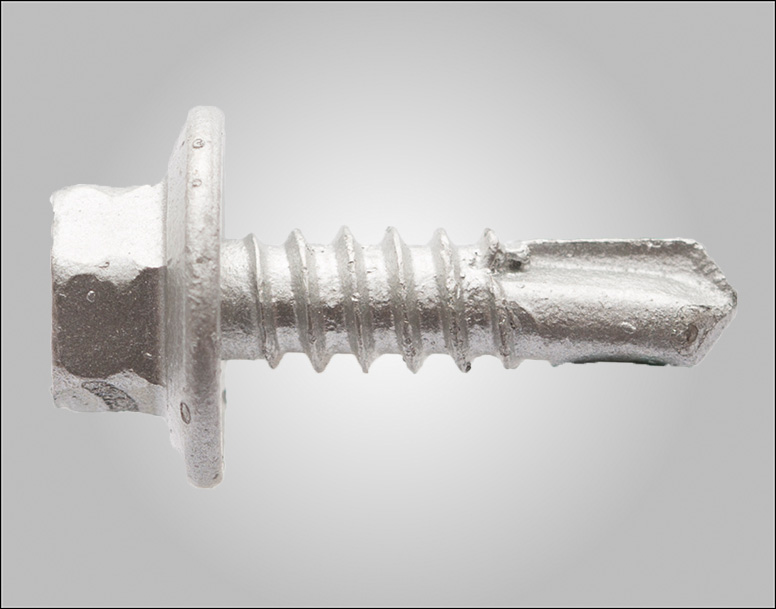

Metal Teks® Hex Head No Seal

Application

General framing screw for roof, wall and floor frame installation. It is also used for reinforcing in truss manufacture. It fixes into steel between 1mm and 5mm thick.


Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-3097-1C4 Metal Teks® 12 14 20mm Hex Head No Seal Climaseal® 4 Colormatch® 500 4 pdf31167-PDS
