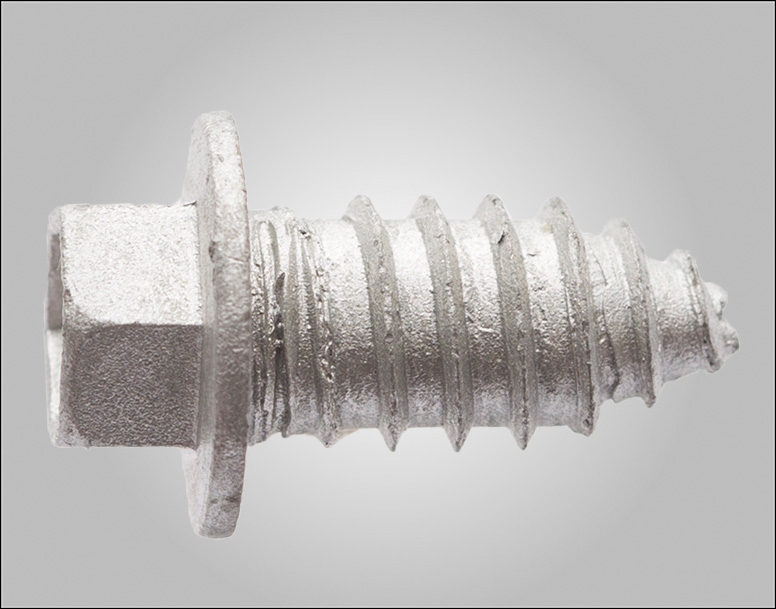

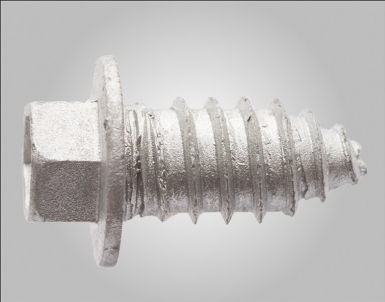

The Buildex® TrussTite Screw is Designed for the assembly of truss components through pre-punched holes. It fixes into steel between 0.75mm and 1.6mm thick.
| Part Number | Product | Gauge | Thread | Length | Head Type | Corrosion Finish | Available Colours | Pack Qty | Carton Qty | Datasheet link |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-181-0011-1CS | TrussTite Screw Hex Head | 5/16 | 12 | 17mm | Hex Head | Climaseal® 3 | Unpainted | 1500 | 1 | 18001-PDS |

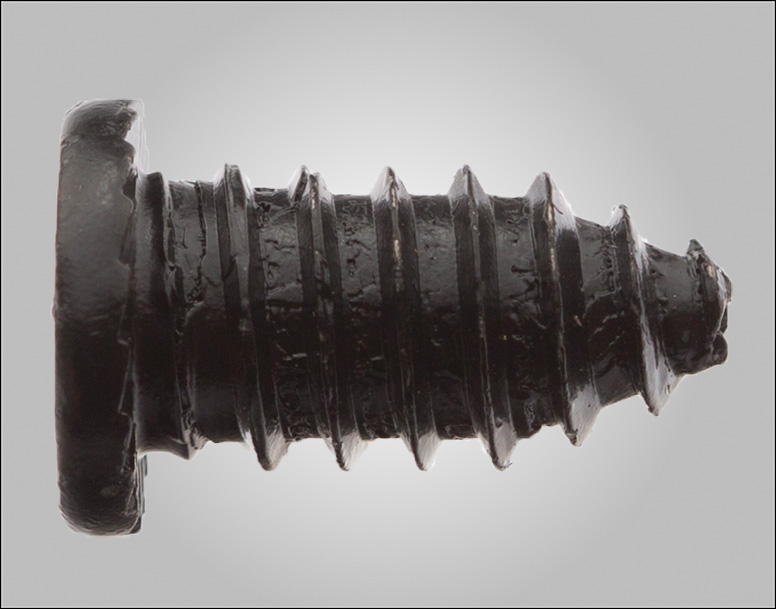

Designed for the assembly of steel roof trusses and floor trusses into pre-punched holes. It fixes into steel between 0.75mm and 1.6mm thick.
| Part Number | Product | Gauge | Thread | Length | Head Type | Corrosion Finish | Available Colours | Pack Qty | Carton Qty | Datasheet link |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-181-0013-3MP | TrussTite Screw Smooth Top | 5/16 | 12 | 17mm | Smooth Top | Climaseal® 3 | Unpainted | 1500 | 1 | 18002-PDS |

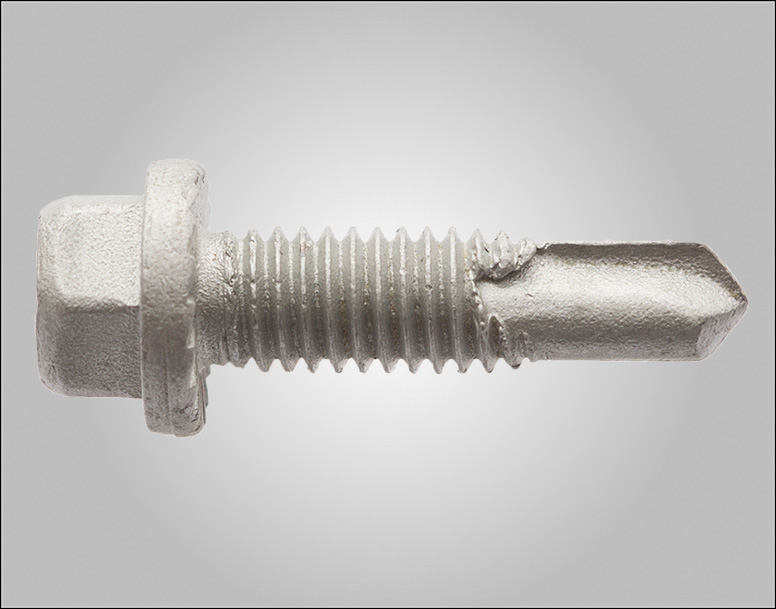

Buildex® M6 GX Teks® Screw is designed for the assembly of steel roof trusses and floor trusses. The product does not require a pre-punched hole but can be used with pre-punched holes of 5mm or smaller. It fixes into steel between 0.75mm and 3.5mm thick.
| Part Number | Product | Gauge | Thread | Length | Head Type | Corrosion Finish | Available Colours | Pack Qty | Carton Qty | Datasheet link |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-371-0002-2CS | GX Frame Tek Screw Hex Head | M6 | 22mm | Hex Head | Climaseal® 3 | Unpainted | 500 | 1 | 37101-PDS |
General framing screw for roof, wall and floor frame installation. It is also used for reinforcing in truss manufacture. It fixes into steel between 1mm and 5mm thick.
| Part Number | Product | Gauge | Thread | Length | Head Type | Seal | Corrosion Finish | Available Colours | Pack Qty | Carton Qty | Datasheet link |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6-311-3097-1C4 | Metal Teks® | 12 | 14 | 20mm | Hex Head | No Seal | Climaseal® 4 | Colormatch® | 500 | 4 |
