Buildex Concealed Clip Hex Washer Teks Screw

Concealed fixing to metal

Buildex® Metal Teks®

Application

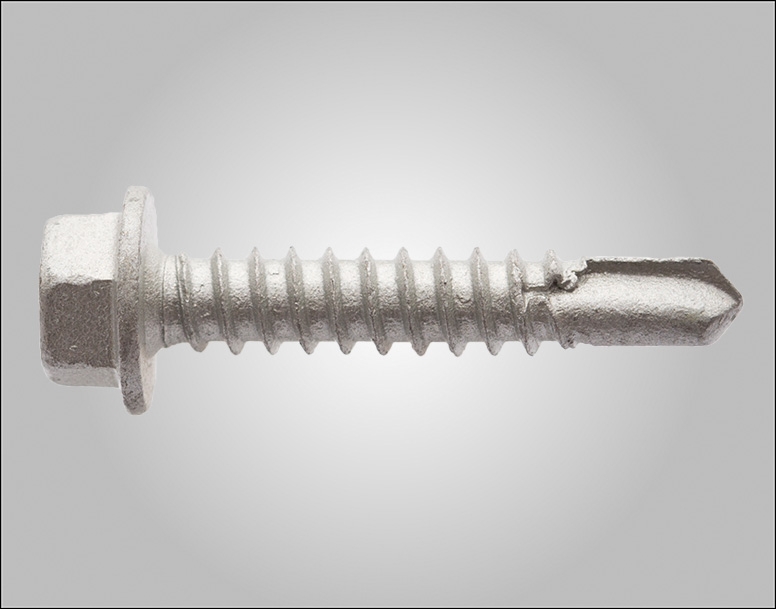

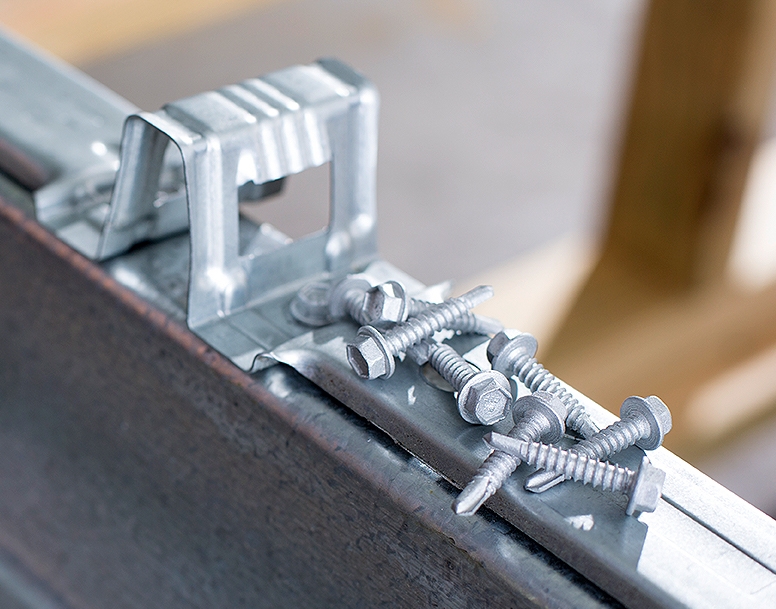

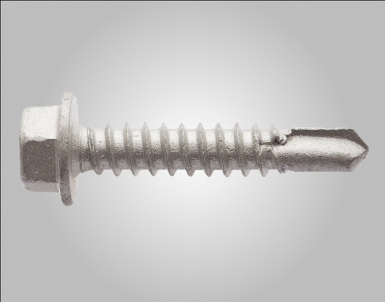

The Buildex® 12-14 x 30mm Concealed Clip Hex Teks® screw with Climaseal® 3 is used for fixing concealed fix clips to steel purlins.

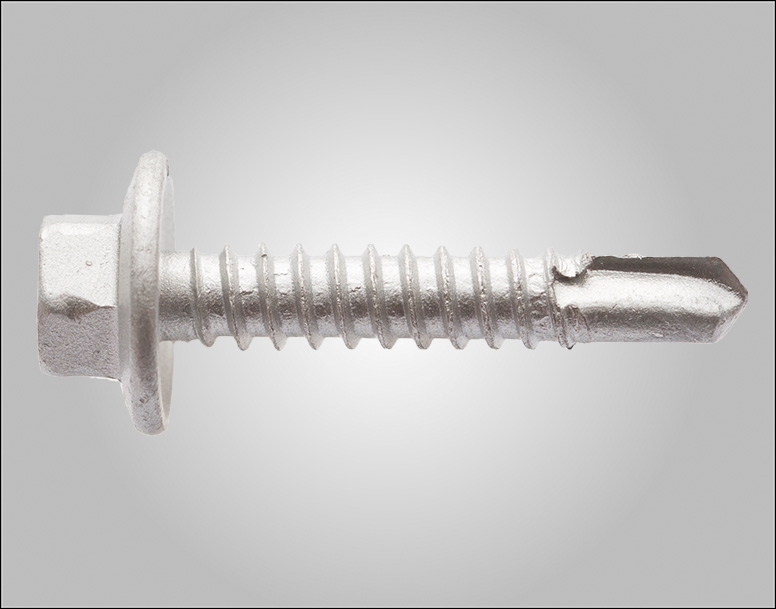

There is also the option of selecting a 12g fastener with a 10g head to suit the application.

Features and Benefits

  • Fast and Easy application into steel with Teks® point
  • High pull-out strength
  • Climaseal® 3 corrosion protection available

Metal Teks®

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishAvailable ColoursPack QtyCarton QtyDatasheet link
6-311-0473-1CS Metal Teks® 12 14 30mm Hex Head No Seal Climaseal® 3 Colormatch® 1000 1 31156-PDS
6-311-0782-2CS Metal Teks® 12 14 30mm Hex Head (10g) No Seal Climaseal® 3 Unpainted 1000 1 31231-PDS
