Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex Metal Teks

FIXing ROOF SHEETING TO metal

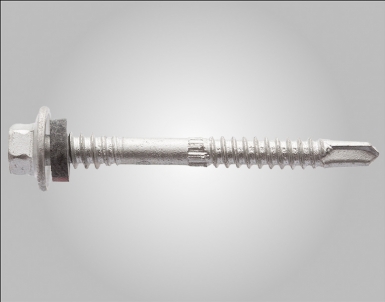

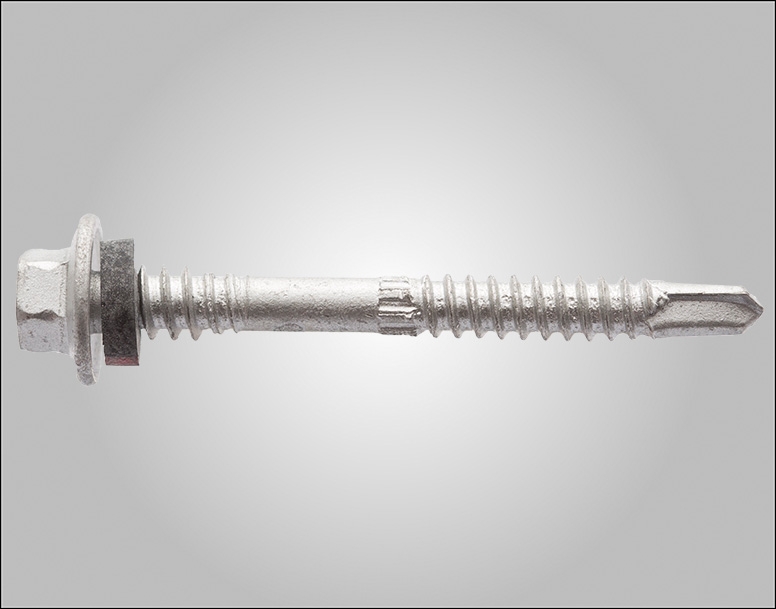

Metal Teks® – 12-14 Hex Head Higrip®

Application

Buildex® 12-14 Metal Teks® Hex Head Higrip® with Seal are suitable for fixing metal roofing to steel between 1mm and 5mm thick.

Features & Benefits

  • Fast and Easy application into steel between 1mm and 3mm thick
  • High pull-out strength
  • Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard® feature* which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Higrip® feature* grips to the roof sheeting to create a positive join preventing water entry and over drilling. It also stops the roof sheet moving down the shank when the roof is walked on.
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3637-7C4 Metal Teks® - AutoTeks® 12 14 39mm AutoTeks® Hex With Seal Climaseal® 4 ✔ ✔ Colormatch® 1000 1 pdf31287-PDS
1-310-9637-7TPC4 (While stocks last) Metal Teks® 12 14 39mm AutoTeks® Hex With Seal Climaseal® 4 ✔ ✔ Plain 100 5 pdf31287-PDS
6-310-3579-4C4 Metal Teks® 12 14 52mm AutoTeks® Hex With Seal Climaseal® 4 ✔ ✔ Colormatch® 1000 1 pdf31287-PDS
6-310-3326-6C4 Metal Teks® 12 14 68mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 1000 1 pdf31168-PDS
6-310-3580-1C4 (While stocks last) Metal Teks® 12 14 80mm Hex Head With Seal Climaseal® 4 ✔ ✔ Colormatch® 500 1 pdf31168-PDS

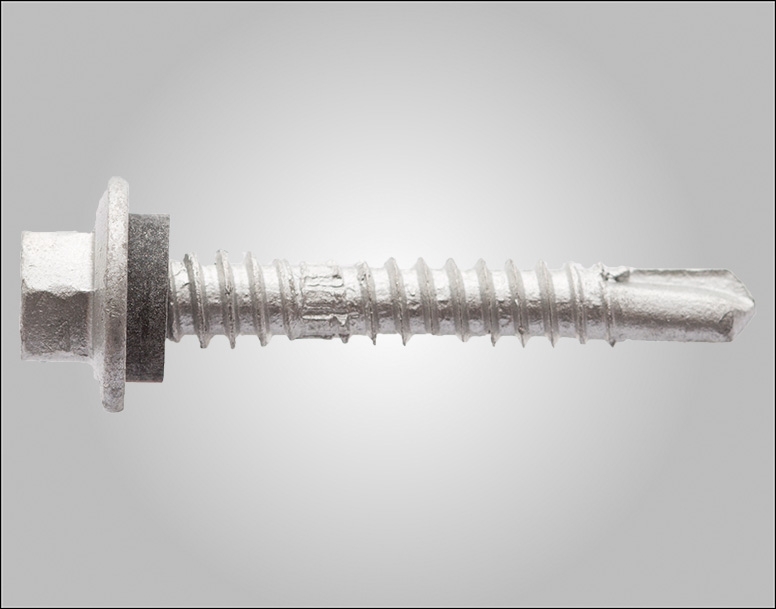

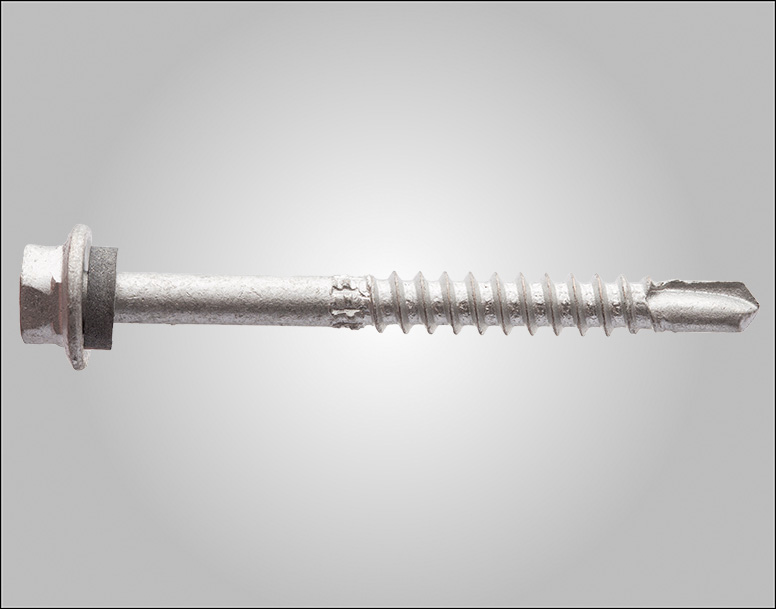

Metal Teks® – 14-10 Hex Head

Application

Buildex 14-10 Metal Teks® Hex Head with Seal are suitable for fixing metal roofing to steel between 1.2mm and 5mm thick.

Features & Benefits

  • Fast and Easy application into steel
  • High pull-out strength
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard® feature which prevents the scratching and scouring of the fastener shank that can happen during installation

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3111-2C4 Metal Teks® 14 10 53mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 1000 1 pdf31174-PDS
1-310-9111-9TPC4 Metal Teks® 14 10 53mm Hex Head With Seal Climaseal® 4 ✔ Colormatch®* 100 5 pdf31174-PDS
6-310-5111-2C5 Metal Teks® 14 10 53mm Hex Head With Seal Climaseal® 5 ✔ Colormatch® 1000 1 pdf31174-PDS
6-310-3124-9C4 Metal Teks® 14 10 68mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 1000 1 pdf31174-PDS
6-310-5124-9C5 Metal Teks® 14 10 68mm Hex Head With Seal Climaseal® 5 ✔ Colormatch® 1000 1 pdf31174-PDS
6-310-3322-3C4 Metal Teks® 14 10 78mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 500 1 pdf31174-PDS
6-310-3335-2C4 (While stocks last) Metal Teks® 14 10 95mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 500 1 pdf31174-PDS

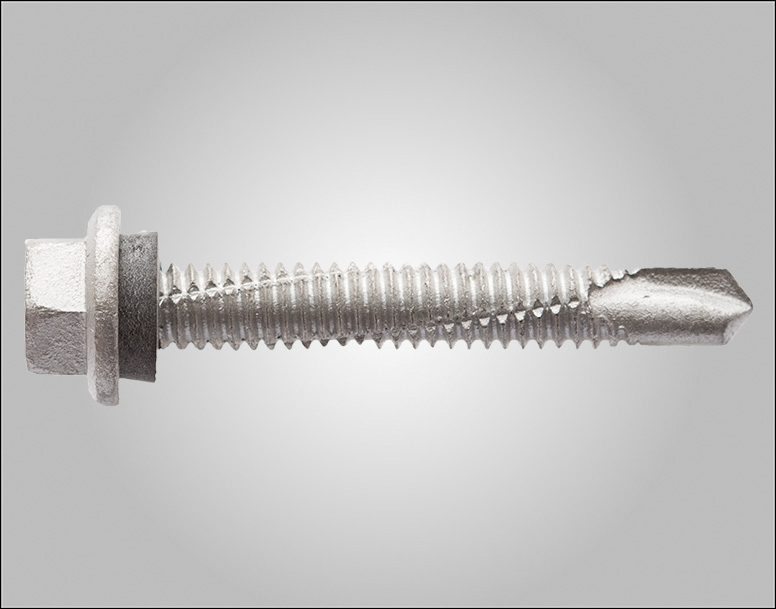

Metal Teks® – 14-20 Hex Head

Application

Buildex 14-20 Metal Teks® Hex Head with Seal are suitable for fixing metal to metal.

Features & Benefits

  • Fast and Easy application into steel
  • High pull-out strength
  • Climaseal® 4 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishShankguardAvailable ColoursPack QtyCarton QtyDatasheet link
6-310-3403-3C4 Metal Teks® 14 20 45mm Hex Head With Seal Climaseal® 4   Colormatch® 1000 1 pdf31135-PDS
6-310-3035-4C4 (While stocks last) Metal Teks® 14 20 65mm Hex Head With Seal Climaseal® 4   Colormatch® 1000 1 pdf31135-PDS
