Fixing insulated panels TO TIMBER

Type 17s – 14-10 Hex Head

Application

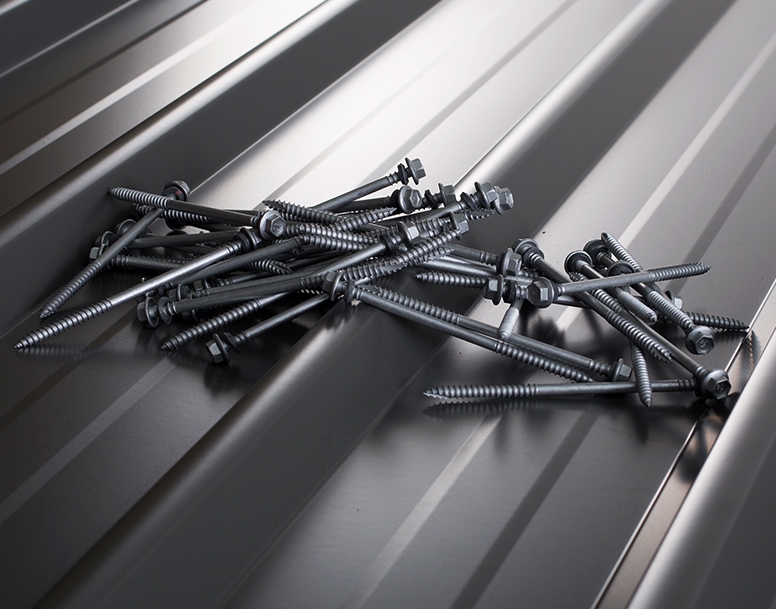

Buildex® 14-10 Type 17 screws are designed for crest fixing insulated roof panels and insulated wall panels to timber.

Features & Benefits

  • Fast and Easy application into both Hardwood and Softwood battens
  • High pull-out strength
  • Climaseal® 5 and Climaseal® 4 corrosion protection available
  • Higrip® Feature* grips to the roof sheeting to create a positive join preventing water entry and over drilling. It also stops the roof sheet moving down the shank when the roof is walked on.

* Only available on some fastening solutions. Refer below product table.

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPackQtyCarton QtyDatasheet link
6-030-3038-2C4 (While stocks last) Type 17 14 10 100mm Hex Head With Seal Climaseal® 4   Colormatch® 500 1 pdf03216-PDS
6-030-3248-2C4 (While stocks last) Type 17 14 10 125mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 250 1 pdf03216-PDS
6-030-3200-9C4 (While stocks last) Type 17 14 10 150mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 250 1 pdf03216-PDS
6-030-3338-8C4 (While stocks last) Type 17 14 10 175mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 250 1 pdf03216-PDS
6-030-3352-2C4 (While stocks last) Type 17 14 10 200mm Hex Head With Seal Climaseal® 4 ✔ Colormatch® 250 1 pdf03216-PDS

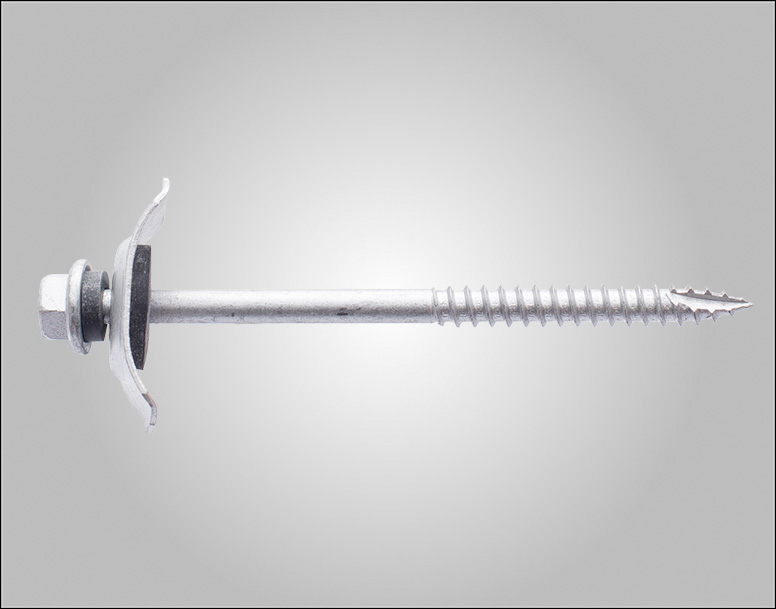

Roof-lok® Cyclone Assembly - Type 17

Application

Buildex has a range of long 14 gauge Type 17 screws with Roof-lok® Cyclone Assembly which are suitable for crest fixing Insulated Panels into timber.

Features and Benefits

  • Simplicity of one solution for both Corrugated and Square Rib Roof Profiles.
  • Ultimate Roof Holding Capability in Cyclonic Conditions – large contact area dramatically improves ability to hold down roof.
  • Complies with Cyclonic Building Standards – Suitable for roofs designed for Category 5 Cyclones. Deemed to Comply Approval (m/192) from the Northern Territory Building Advisory Committee and has been tested and passed by James Cook University Cyclone Testing Station (Test Summary Sheet TS936 Revision A)

  • Helps Prevent Water Entry with Large 19mm EPDM Seal

  • Climaseal® 4 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealCyclone AssemblyCorrosion FinishHi GripAvailable ColoursPackQtyCarton QtyDatasheet link
6-035-3200-9C4 (While stocks last) Type 17 14 10 150mm Hex Head With Seal Roof-lok® Climaseal® 4 ✔ Colormatch® 150 1 pdf03216-PDS
6-035-3352-2C4 (While stocks last) Type 17 14 10 200mm Hex Head With Seal Roof-lok® Climaseal® 4 ✔ Colormatch® 100 1 pdf03216-PDS

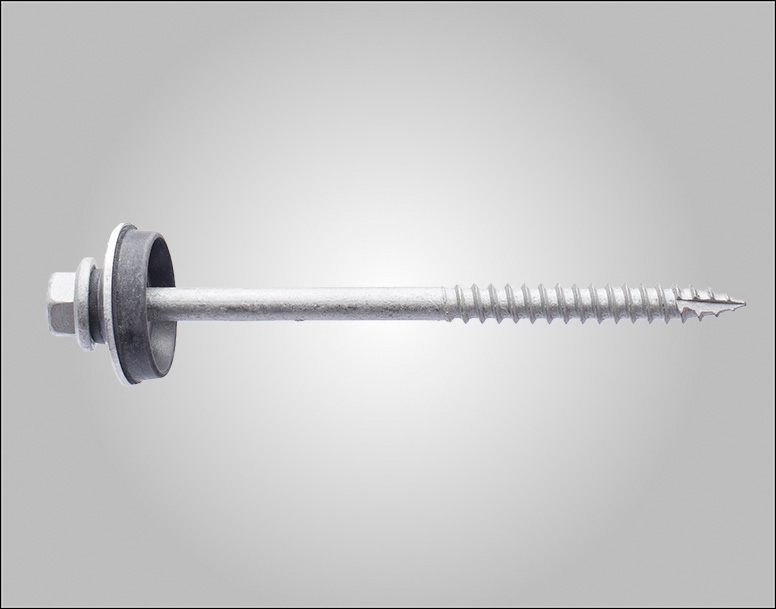

MultiSeal Cyclone Assembly - Type 17

Application

Buildex has a range of long 14 gauge Type 17 screws with a 25mm MultiSeal Cyclone Assembly which are suitable for Ridge Cap Fixing Insulated Panels into timber.

Features and Benefits

  • Fast and Easy application into both Hardwood and Softwood battens
  • 25mm EPDM Aluminium Bonded Washer to help prevent water entry.
  • Climaseal® 4 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealCyclone AssemblyCorrosion FinishHi GripAvailable ColoursPackQtyCarton QtyDatasheet link
6-030-3361-1C4 (While stocks last) Type 17 14 10 100mm Hex Head With Seal MultiSeal 25mm Climaseal® 4   Colormatch® 150 1 pdf03216-PDS
6-030-3363-3C4 (While stocks last) Type 17 14 10 125mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 ✔ Colormatch® 150 1 pdf03216-PDS
6-030-3364-4C4 (While stocks last) Type 17 14 10 150mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 ✔ Colormatch® 150 1 pdf03216-PDS
6-030-3366-6C4 (While stocks last) Type 17 14 10 175mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 ✔ Colormatch® 150 1 pdf03216-PDS
6-030-3368-8C4 (While stocks last) Type 17 14 10 200mm Hex Head With Seal MultiSeal 25mm Climaseal® 4 ✔ Colormatch® 150 1 pdf03216-PDS

Hi-Rib Cyclonic Type 17

Application

Buildex Hi-Rib 14-10 Cyclonic Timber Screws are designed for crest fixing both Hi-Rib profiles and fixes into timber battens (both hardwood and softwood)

Features & Benefits

  • Optimum roof holding performance in Cyclonic conditions for high rib Profiles
  • Climaseal® 4 corrosion protection available
  • Under-roof Corrosion Protection with Shankguard feature which prevents the scratching and scouring of the fastener shank that can happen during installation
  • Fast and Easy application into both Hardwood and Softwood battens
* Only available on some fastening solutions.  Refer below product table.


Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-030-3058-9C4 (While stocks last) Type 17 - Cyclonic 14 10 75mm Hex Head With Seal Climaseal® 4 Colormatch® 200 1 pdf03216-PDS
