Technical reference only. For ongoing range please consult the latest Fastener Guide
Buildex® Hex Head Series 500® Screw

General applications - Fixing to thick steel

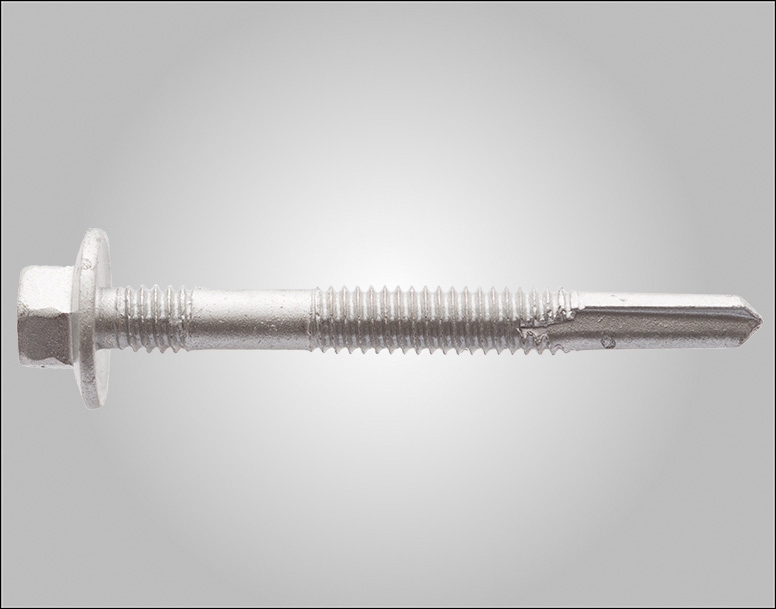

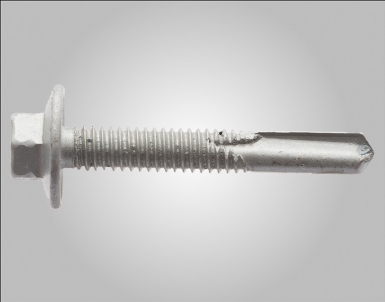

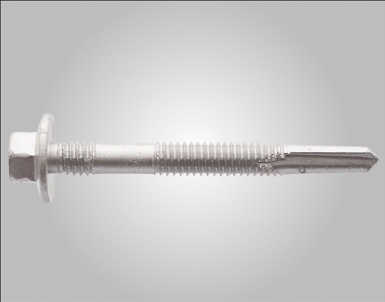

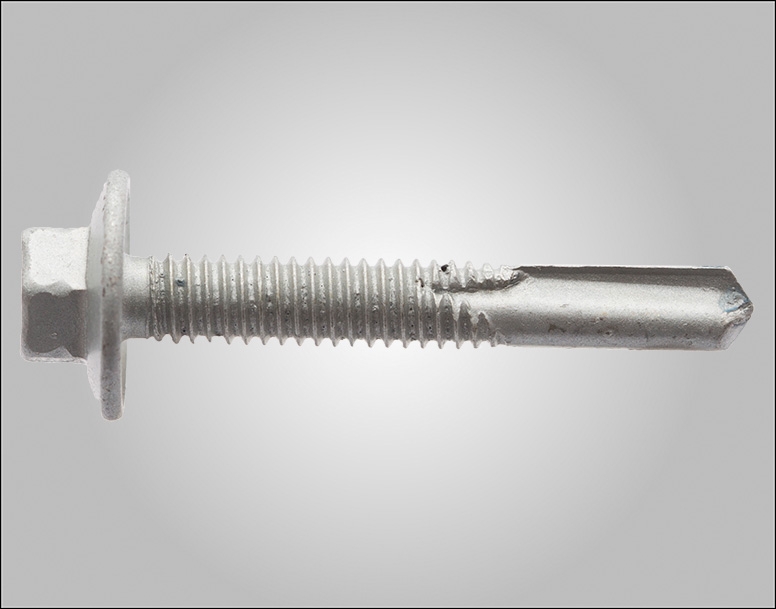

Hex Head Series 500® Teks®

Application

Buildex® 12-24 Hex Head Series 500® Teks® Screw is used for metal to metal fixing of thick steel purlin and hot rolled steel. Used for metal to metal fixing in the HAVAC, plumbing and steel fabrication industries where thick steel section is in use. A general all purpose metal to thick metal fixing product with a drill capacity of up to 12mm.

Features & Benefits

  • Versatile all purpose fastener for fixing into thick steel
  • Teks® point for fast and easy application into steel up to 12mm thick
  • High pull-out strength
  • Climaseal® 3 corrosion protection available
Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-351-0001-5CS Metal Teks® - Series 500 12 24 38mm Hex Head No Seal Climaseal® 3   Colormatch® 500 3 35003-PDS
6-351-0016-1CS Metal Teks® - Series 500 12 24 53mm Hex Head No Seal Climaseal® 3 ✔ Unpainted 1000 1 35005-PDS
6-351-0017-9CS Metal Teks® - Series 500 12 24 68mm Hex Head No Seal Climaseal® 3 ✔ Unpainted 1000 1 35005-PDS

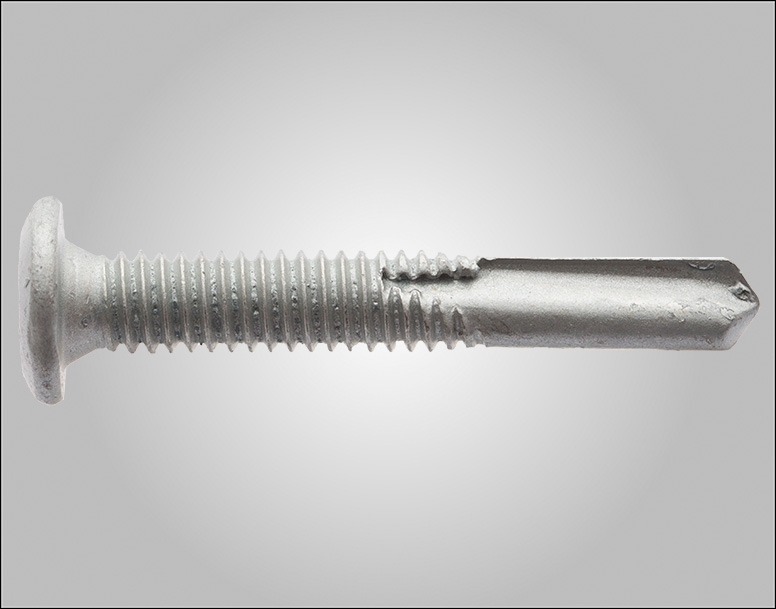

Wafer Head Series 500® Teks®

Application

Buildex® 12-24 Wafer Series 500® Teks® Screw is used for metal to metal fixing of thick steel purlin and hot rolled steel. It is used for metal to metal fixing in the HAVAC, plumbing and steel fabrication industries where thick steel section is in use. A general all purpose metal to thick metal fixing product.

 Features & Benefits

  • Low profile head ideal for metal deck clips and brackets
  • Versatile all purpose fastener for fixing into thick steel
  • Teks® point for fast and easy application into steel up to 12mm thick
  • High pull-out strength
  • Climaseal® 3 corrosion protection available

Part NumberProductGaugeThreadLengthHead TypeSealCorrosion FinishHi GripAvailable ColoursPack QtyCarton QtyDatasheet link
6-351-0005-8CS Metal Teks® - Series 500 12 24 38mm Wafer Head No Seal Climaseal® 3   Unpainted 500 4 35007-PDS
